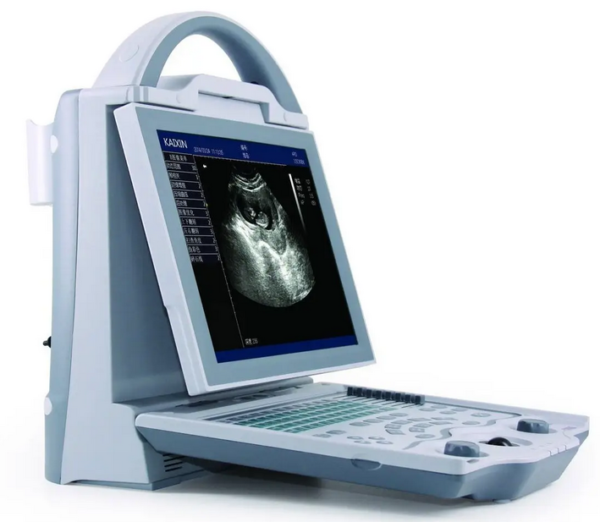

Portable Ultrasound Machine KAIXIN 5600

Portable Ultrasound Machine KAIXIN 5600

Ultrasound Machine KAIXIN 5600

SPECIFICATION for Ultrasound Machine KAIXIN 5600:

  • 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
  • Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
  • Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
  • Two probe sockets, auto-identify different optional probe;
  • Body marks:total 64 kinds body marks indicating probe position;
  • Display mode:B,2B,4B ,B/M,M ;
  • Adjustable depth: 10 grades, max depth to 236mm;
  • Gain:0~127dB;
  • Contrast:27~90dB;
  • Gray scale:256;
  • 8 steps intelligent TGC;
  • Frame frequency: 30 frames /second
  • 8 kinds pseudo colors;
  • Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.
  • Cine loop:256 frames;
  • Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
    the gravel software package with real-time position line measurement
  • Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
  • Cardio measurement:Depth, slope, heart rate, cycle;
  • Gynecology measurement and analysis: gynecology general measurement and gynecology report.
  • OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
  • Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
  • One-key store: concise and practical;
  • One-key review:fast, practical image review function;
  • One-key Print;
  • One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
  • Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
  • Unique One-key-light keyboard function for black room use;
  • Display brightness adjustable;
  • Dual TV output: PAL/NTSC, can connect video printer when necessary;
  • Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
  • Power supply adaptor output:DC12.8V 3.0A;
  • Main unit weight:4.5kg(without accessories);
  • Main unit dimension:256×150×326mm(L×W×H)

For knowing more Details about the product, feel free to contact us at 021-32786750.
